New Vehicles » Arctic Cat » M1000 Sno Pro 162"
Model Quick Search

$13,299.00

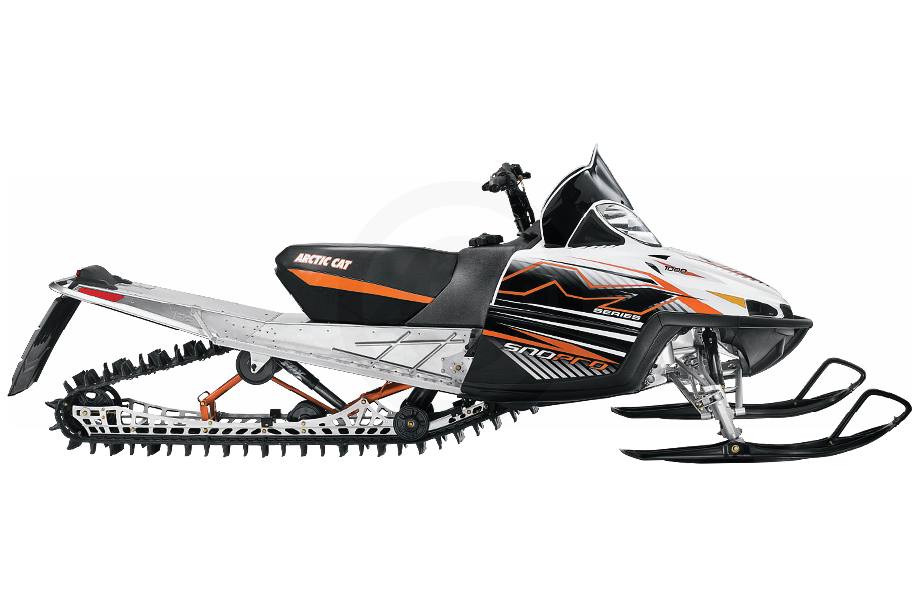

2010 Arctic Cat M1000 Sno Pro 162"


Request a Quote Financing Calculator Request a Brochure Financing Form

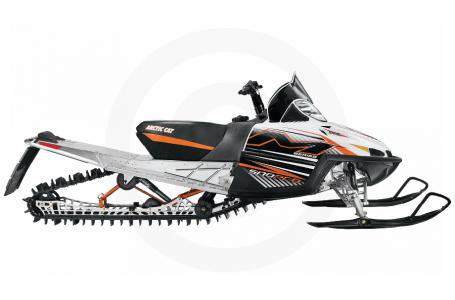

Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Conquer that mountain range. And in doing so, conquer all doubt and fear. The M1000 162 Sno Pro® — the most HP in a mountain sled — has your back. Lock your eyes onto the 1000 laydown engine and you’ll realize we mean business. This 999cc liquid twin is a powerful Expert-Grade Mountain Sled with telescoping handlebar and Industry-Leading Horsepower capable of conquering the deepest powder with proven durability. Our M Series Power Claw™ track keeps you close to whatever bulky landscape you're setting out to vanquish. It features a 15" wide, single-ply track with talon-Like 2.25" paddles. And lightweight running boards reduce your overall weight as you take that mountain. ALL this and the Sno Pro FOX Float® shocks to make it the hardest-working mountain sled. The gauntlet has been thrown down, so conquer away.


Fox Float® Rear Skid: Torsion springs are history. This redesigned frame decreases unsprung weight and reduces unwanted track tensioning. Two rear-mounted wheels inside the rails increase track flexibility and improve sidehill capabilities. The rear end is dampened with a lightweight aluminum FOX® Zero Pro gas shock on the front arm and a FOX Float® shock on the rear arm.


1000 Laydown Engine - The 1000 engine is a 2-stroke, 999c liquid twin with batteryless electronic fuel injection. An engine "laid down" in the chassis moves snowmobile mass toward the ground and efficiently lowers the center of gravity. BEFI adjusts for temperature and altitude. The 1000 also features an Exhaust Pipe Temperature Sensor™ and electronic APV™ exhaust valves to regulate pipe and temperature and optimize performance. Engine reverse is also standard on the 1000. Quick starts, great fuel economy and cleaner emissions.


Engine Reverse: Push—button electronic reverse gets even better. As a feature of the engine, not only is it quick, it’s also a weight saver that sheds nearly 8 pounds.


162" Power Claw™ Track: The M Series Power Claw™ Track is nothing short of miraculous in the steep and deep and surprisingly well behaved on the trail. The 162" track is 15" wide with grabby 2.25" paddles.


FOX Float® Ski Shocks - Gives you the ultimate in suspension performance. The shocks utilize FOX's quick-adjust, load-optimizing air technology and are up to 6 pounds lighter than the conventional coil-over shocks.


Telescoping Handlebar: Our Mountain handlebar gets a new telescoping steering system that creates up-and-down adjustablity without adding extra weight. Drop it down on the trail. Raise it up in the powder. The telescoping handlebar features easy one-hand adjustment with 12 positions.


New Lightweight Seat: The new blow-molded seat base is 3.5 pounds lighter and 3 inches taller than the previous design, while the tapered shape improves maneuverability for both sitting and standing.

    Engine
    • Type: 2-stroke
    • Displacement: 999 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 90.3 x 78 mm
    • Lubrication: Oil Injection
    • Ignition: 3D
    • Carburetion: 50 mm throttle body batteryless EFI
    • Exhaust: APV™ with tuned pipe, pipe sensor and canister
    • Fuel Capacity: 11.4 gal.
    Power Train
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VI double-wishbone A-arms with FOX Float® air shocks
    • Front travel: 9.2 in.
    • Rear suspension: ACT™ M Series slide-rail, FOX® Zero Pro (IFP) shock on front arm, FOX Float® shock on rear arm
    • Rear travel: 19 in.
    Dimensions
    • Overall length: 132 in.
    • Overall width: 46 in.
    • Ski stance: 39-41 in. (adjustable)
    • Track width: 15 in.
    • Track length: 162 in.
    • Lug: 2.25 in.
    Color
    • Color: White
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Mechanical gas gauge
    • Low oil light
    • Coolant overheat light
    • Reverse
    • High/low hand warmer
    • High/low thumb warmer
    • Mountain strap
    • Spark plug holder
    • Belt holder
    • Deluxe Gauge
    • Telescoping handlebar
    Optional Features
    • Tether switch
    • Hitch
    • Mirrors
    • High windshield
    • Ice scratchers
    • Tank pads
    • Tunnel flares
    • Rack
    • Goggle holder
    • Storage bags
    • Tunnel deflectors

    Specifications

    Engine
    Engine Type 2-stroke
    Displacement 999 cc
    Bore x Stroke 90.3 x 78 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 50 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust APV™ with tuned pipe, pipe sensor and canister
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VI double-wishbone A-arms with FOX Float® air shocks
    Front Travel 9.2 in.
    Rear Suspension ACT™ M Series slide-rail, FOX® Zero Pro (IFP) shock on front arm, FOX Float® shock on rear arm
    Rear Travel 19 in.
    Ski Type UHMW plastic saddleless ski
    Ski Stance 39-41 in. (adjustable)
    Track Type Power Claw™
    Track Dimensions Width: 15 in.; Length: 162 in.
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 11.4 gal.
    Color White
    Options
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Optional

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model M1000 Sno Pro 162"
    Style Mountain
    MSRP* $13,199.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 2-stroke
    Displacement 999 cc
    Bore x Stroke 90.3 x 78 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 50 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust APV™ with tuned pipe, pipe sensor and canister
    Alternator
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 11.4 gal.
    Dry Weight
    Windshield
    Color White
    Warranty
    Options
    Electric Start
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS™ VI double-wishbone A-arms with FOX Float® air shocks
    Front Travel 9.2 in.
    Rear Suspension ACT™ M Series slide-rail, FOX® Zero Pro (IFP) shock on front arm, FOX Float® shock on rear arm
    Rear Travel 19 in.
    Ski Type UHMW plastic saddleless ski
    Ski Stance 39-41 in. (adjustable)
    Track Type Power Claw™
    Track Dimensions Width: 15 in.; Length: 162 in.
