New Vehicles » Suzuki » KingQuad 400AS
Model Quick Search

$5,899.00

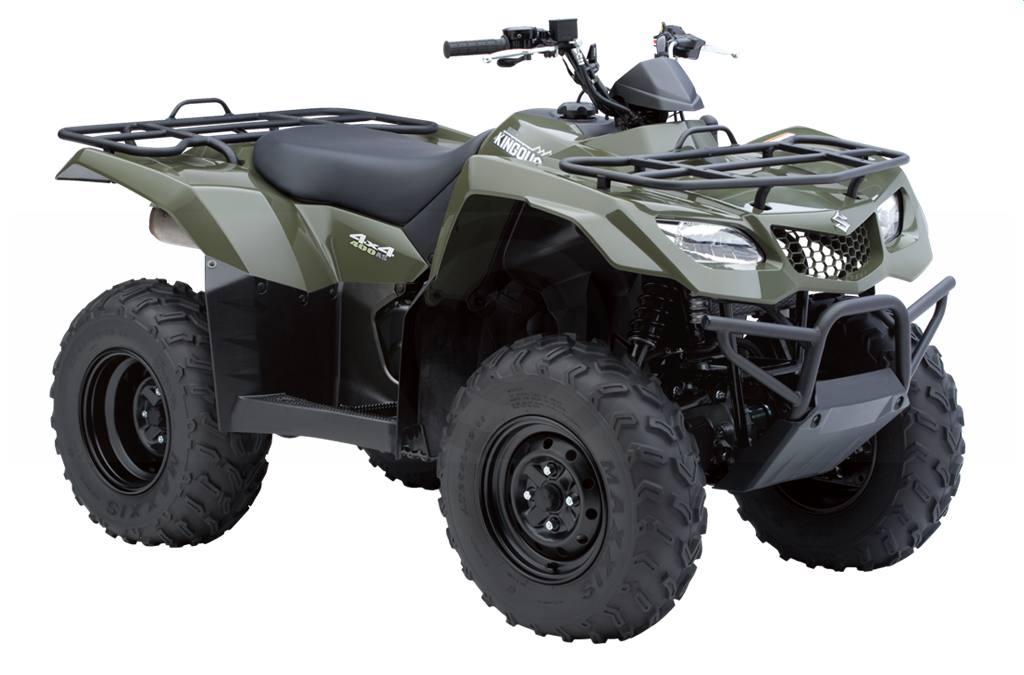

2010 Suzuki KingQuad 400AS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Popular with hunters, farmers, ranchers and workers at construction sites.


For performance that rules, you can’t beat the Suzuki KingQuad 400AS 4X4 Automatic. Both offer an unrivaled combination of exciting sport performance and hard-working capabilities. Whether you’re tackling a tough job or a tough trail, you’ll appreciate their impressive torque and remarkably wide powerband. They also let you select two- or four-wheel drive operation quickly and conveniently, which gives them the versatility to handle rough conditions, daunting chores — or let you enjoy a backwoods getaway.

  • Dual front hydraulic disc brakes feature calipers with a large piston diameter and maximum brake-pad surface area for increased stopping power and outstanding durability.
  • Large 4.2-gallon fuel tank with fuel gauge for outstanding riding range.
  • Aggressive styling and trim bodywork reflect KingQuad’s powerful workhorse capabilities.
  • Large, 25-inch wheels and tires.
  • Minimum Age: 16 years old
Specifications
  • Brakes Front: Disc brake, twin
  • Brakes Rear: Drum brake
  • Color: Red, Green
  • Curb Weight: 285 kg (628 lbs):
  • Final Drive: Shaft drive
  • Fuel Tank Capacity: 16.0 L (4.2/3.5US/Imp gal) - Including Reserve
  • Ground Clearance: 250 mm (9.8 in)
  • Overall Length: 2060 mm (81.1 in)
  • Overall Width: 1145 mm (45.1 in)
  • Seat Height: 840 mm (33.1 in)
  • Suspension Front: Independent, double wishbone, coil spring, oil damped
  • Suspension Rear: Swingarm type, coil spring, oil damped
  • Tires Front: AT25 × 8-12, tubeless
  • Tires Rear: AT25 × 10-12, tubeless
  • Transmission: Automatic variable ratio (V-belt)
  • Wheelbase: 1270 mm (50.0 in)
  • Bore Stroke: 82.0 mm (3.228 in) x 71.2 mm (2.803 in)
  • Compression Ratio: 9.0 : 1
  • Engine: 4-stroke, air-cooled with SACS, OHC
  • Fuel System: KEIHIN CVK32, single
  • Ignition: Electronic ignition (CDI)
  • Lubrication: Wet sump
  • Starter: Electric starter
  • Warranty: 12 month limited warranty.
New Features
  • Overall length is under 82 inches so KingQuad400 4x4 fits into a 6.5-foot truck bed.
  • New wrinkle-paint finish on the racks and front bumper for increased durability and scratch resistance.
  • New black wheels.
Engine
  • Technically advanced QuadMatic transmission — a fully automatic, V-belt, continuously variable-ratio design with high-low range and reverse.
  • Suzuki Advanced Cooling System (SACS™) with factory-installed oil cooler and thermostat-controlled cooling fan helps cool engine during hard work or under excessive load.
  • A torque-sensing limited-slip front differential combines traction and light steering, especially during tight maneuvering.
  • Two- or four-wheel drive operation that you select with the flip of a handlebar-mounted lever.
  • Four-stroke engine with class-exclusive four-valve cylinder head tuned for strong acceleration and abundant torque.
  • Advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.
  • Fuel petcock automatically switches between on/off positions.
  • Automotive gate-type gearshift lever lets you conveniently choose high- or low-range, neutral or reverse.
  • Shaft drive is reliable and durable, and provides nearly maintenance-free operation.
  • A start-in-gear system — functional when the rear brake is applied — allows starting the engine without shifting to neutral when conditions warrant.
  • Electric start with a backup recoil starter.
  • High-low selectable sub-transmission helps provide maximum versatility over a variety of terrain.
Chassis
  • Heavy-duty front and rear carrying racks let you easily take advantage of superb cargo-carrying capabilities.
  • Full floorboards with integrated raised footpegs provide protection.
  • Instrument display includes speedometer, odometer and indicator lamps for neutral/reverse and oil temperature.
  • Lightweight, long wheelbase and low seat height provide an excellent combination of maneuverability and comfort.
  • Automotive-style DC power outlet on front fender.
  • Lightweight, high-strength polyethylene skid plates.
  • Water-resistant underseat rear storage compartment.
  • A front independent double-wishbone suspension design offers smooth performance and remarkable ground clearance and allows 6.7 inches of wheel travel.
  • Swingarm rear-suspension system with 6.7 inches of wheel travel and class-exclusive twin shock absorbers for agile handling and plush responsiveness.
  • T-shaped seat provides maximum rider mobility during sport riding and while tackling difficult terrain.
  • Winch-ready chassis and factory-installed flexible tube routing for wiring make winch installation simple.
  • Winch-ready chassis and factory-installed flexible tube routing for wiring make winch installation simple.

Specifications

Engine
Engine Type 4-stroke, OHC
Bore x Stroke 82.0 x 71.2 mm (3.228 x 2.803 in.)
Engine Cooling Air-cooled with SACS
Fuel System KEIHIN CVK32, single
Starting System Ignition: Electronic ignition (CDI); Starter: Electric starter
Chassis
Front Suspension Independent, double wishbone, coil spring, oil damped
Front Brake Type Disc brake, twin
Front Tires AT25 × 8-12, tubeless
Rear Suspension Swingarm type, coil spring, oil damped
Rear Brake Type Drum brake
Rear Tires AT25 × 10-12, tubeless
Dimensions/Capacities
Dry Weight 285 kg (628 lbs.)
Fuel Capacity 16.0 l (4.2 gal)
Ground Clearance 250 mm (9.8 in.)
Machine Dimensions (LxWxH) 81.1 x 45.1 in. (2060 x 1145 mm)
Wheelbase 1270 mm (50.0 in.)
Drive Train
Final Drive Shaft drive
Transmission Automatic variable ratio (V-belt)
General
Colors Red, Green
Warranty 12 month limited warranty.

Compare Models

 Print








Year 2010
Manufacturer Suzuki
Model KingQuad 400AS
Style Utility
MSRP* $5,799.00
Chassis
Front Suspension Independent, double wishbone, coil spring, oil damped
Front Travel
Front Brake Type Disc brake, twin
Front Tires AT25 × 8-12, tubeless
Rear Suspension Swingarm type, coil spring, oil damped
Rear Travel
Rear Brake Type Drum brake
Rear Tires AT25 × 10-12, tubeless
Frame
Dimensions/Capacities
Dry Weight 285 kg (628 lbs.)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 16.0 l (4.2 gal)
Ground Clearance 250 mm (9.8 in.)
Machine Dimensions (LxWxH) 81.1 x 45.1 in. (2060 x 1145 mm)
Wheelbase 1270 mm (50.0 in.)
Drive Train
Drive Train
Final Drive Shaft drive
Transmission Automatic variable ratio (V-belt)
Engine
Engine Type 4-stroke, OHC
Displacement
Bore x Stroke 82.0 x 71.2 mm (3.228 x 2.803 in.)
Cylinders
Engine Cooling Air-cooled with SACS
Fuel System KEIHIN CVK32, single
Starting System Ignition: Electronic ignition (CDI); Starter: Electric starter
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Red, Green
Warranty 12 month limited warranty.
